Extruded Tubing

Fluid Management Tubing

With tubing fabrication facilities in 5 countries, we offer a scalable, full-service package made to your precise specifications, including tubing, fittings, molded components, subassemblies, and assemblies.

Fluid management extrusions by SPG

Single- and Multilumen Tubing

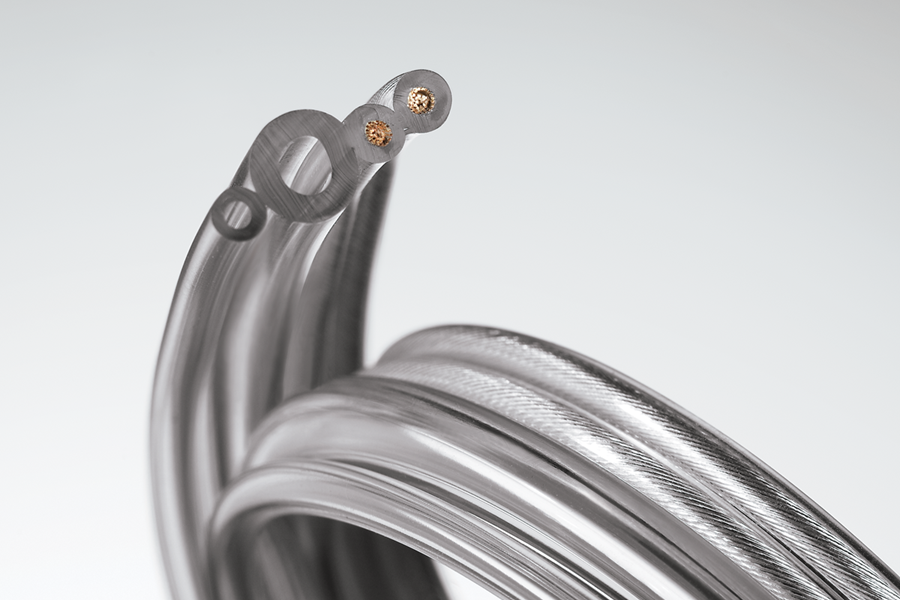

Fluid management extrusions in a variety of sizes and colors by SPG

Materials

  • Standard materials including PVC (DEHP, non DEHP) polycarbonate, HDPE, LDPE, and polyurethane

More on Materials

Dimensions

  • OD range: 0.020” (0.508 mm) min; 1.250” (31.75 mm) max
  • ID range: 0.010” (0.254 mm) min; 1.200” (30.48 mm) max
  • Tolerances may vary depending on durometer, material, and size of tubing
  • Up to 6 lumens depending upon size or material

Co-, Tri-, and Multilayer Extrusion

Fluid management tubing by SPG

As a high-end extruder, our capabilities include coextruded and triextruded tubing, aligning materials with different performance properties into a single solution.

Capabilities

  • Multilayer materials
  • Wire encapsulation
  • Coiled tubing
  • Paratubing
  • Solvent and UV bonding
  • Striped tubing
  • Tapered tubing
  • Bump tubing

High-Pressure Braided Tubing

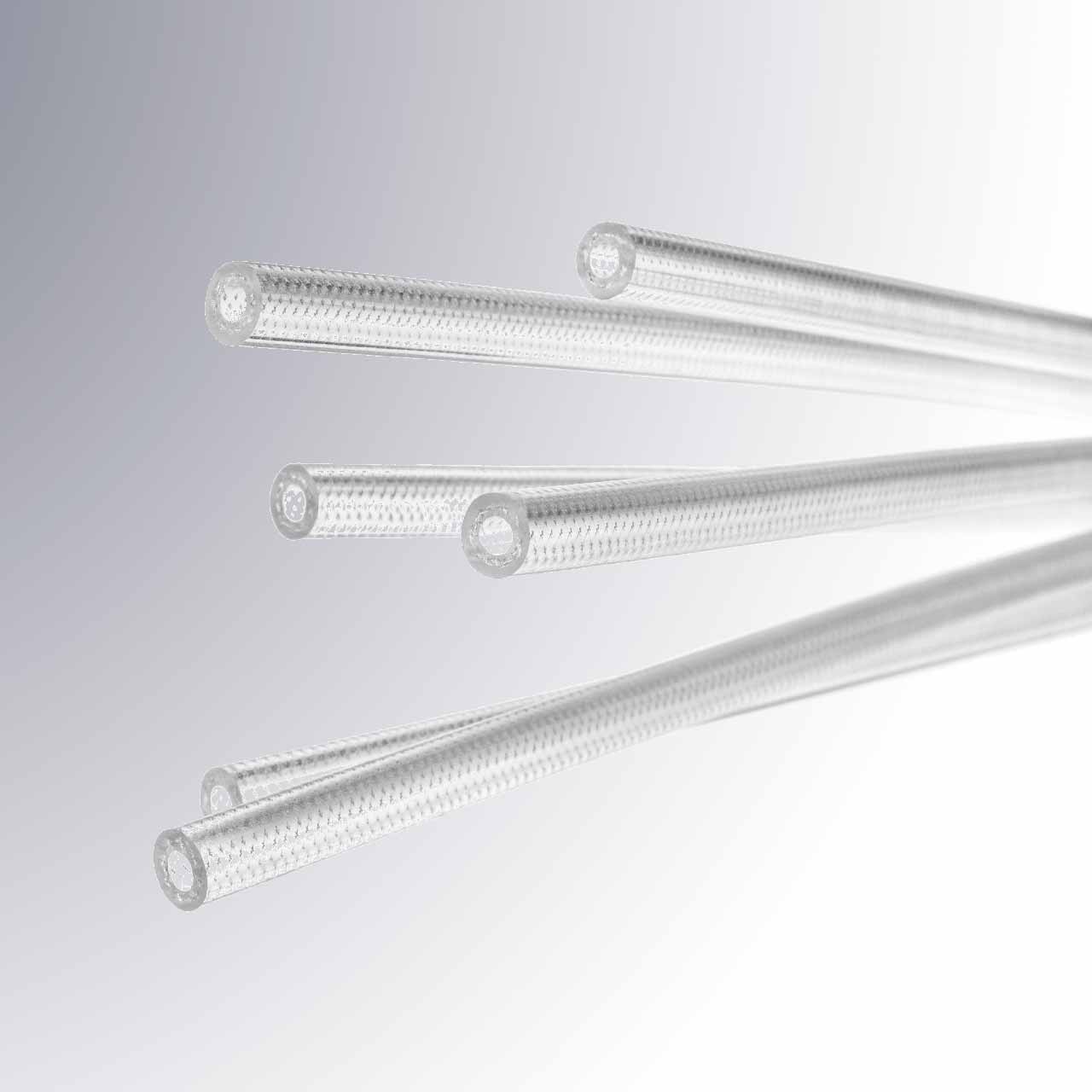

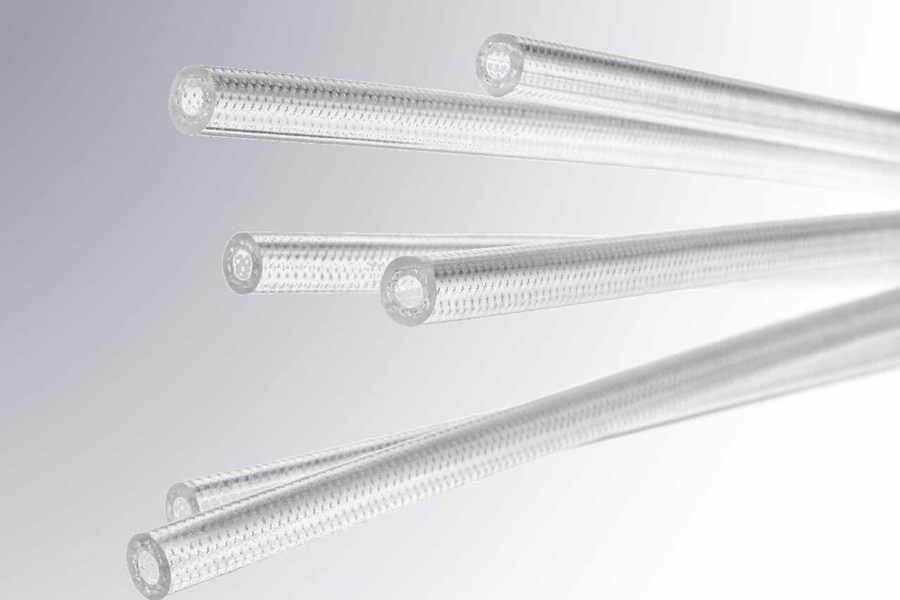

Braided tubing by SPG

Shop High Pressure Braided Tubing

Known for its high quality, our Adam Spence® High-Pressure Braided Tubing was developed in the early 1990s. Since then, we’ve become the world’s leading manufacturer of high-pressure braided tubing for vascular balloon inflation, contrast injection, and vacuum procedures.

Standard Cut Lengths

  • 7"–102" (178 mm–2590 mm)

Dimensions

  • 0.071” x 0.142" (1.80 x 3.61 mm)
  • 0.088” x 0.188" (2.24 x 4.78 mm)
  • 0.110” x 0.188" (2.79 x 4.78 mm)

Material

  • Polyurethane with braided monofilament

Test & Analytical Capabilities

  • Constant working pressure of 1200 psi
  • Burst pressure exceeding 1700 psi
  • High flexibility
  • High clarity
  • Available with or without UV or solvent-bonded connectors
Contact an Extruded Tubing Specialist
+1.404.564.8560
Contact Us
